Home > Product > 8” Compact Fluorescent Housing

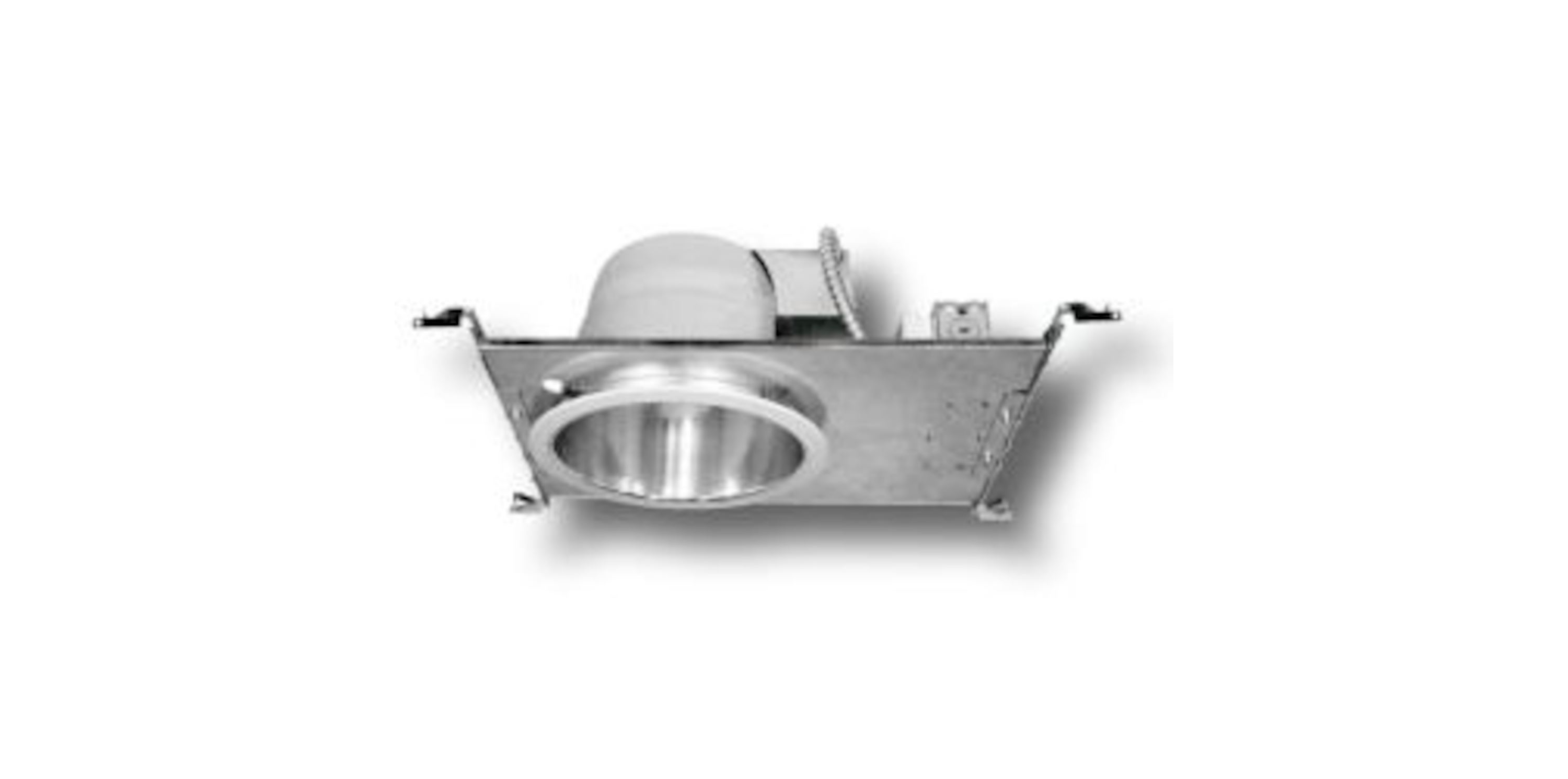

8” Compact Fluorescent Housing

8140H Series

Log in or register to see quantities and IES sheets

Download the photo metric sheet for this product here.
Download the specification sheet for this product here.
(Acrobat Reader Required)
Specifications
  • Part #:
    • 8140H-Exx (non dimmable)
    • 8140H-Dxx (dimmable)
  • EM option: 8140H-EM (emergency)
  • Description: 8” Compact Fluorescent Housing
  • Design Features
    • Thermal Protection: Protected against misuse of insulation and improper wiring
    • Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
    • IC rating IC rated for direct contact with non cellulose insulation
    • Nails Pre installed captive nails on bar hangers
    • J Box: Listed for feed through wiring (4 in-4 out) and eight ½” knockouts & four non metallic cable knockouts w/ strain clamps
    • Connectors: 3-port quick connectors
    • Lamp: Horizontally mounted DTT (Double twin tubes or TT
    • Wattage: 2x13W, 2x26W, 2x32W, 2x42W
    • Ballast: HPF (High power factor) electronic for 4-pin type
    • Voltage: 120/277V
  •  Listing
    • ETL/UL: cULus for damp location
