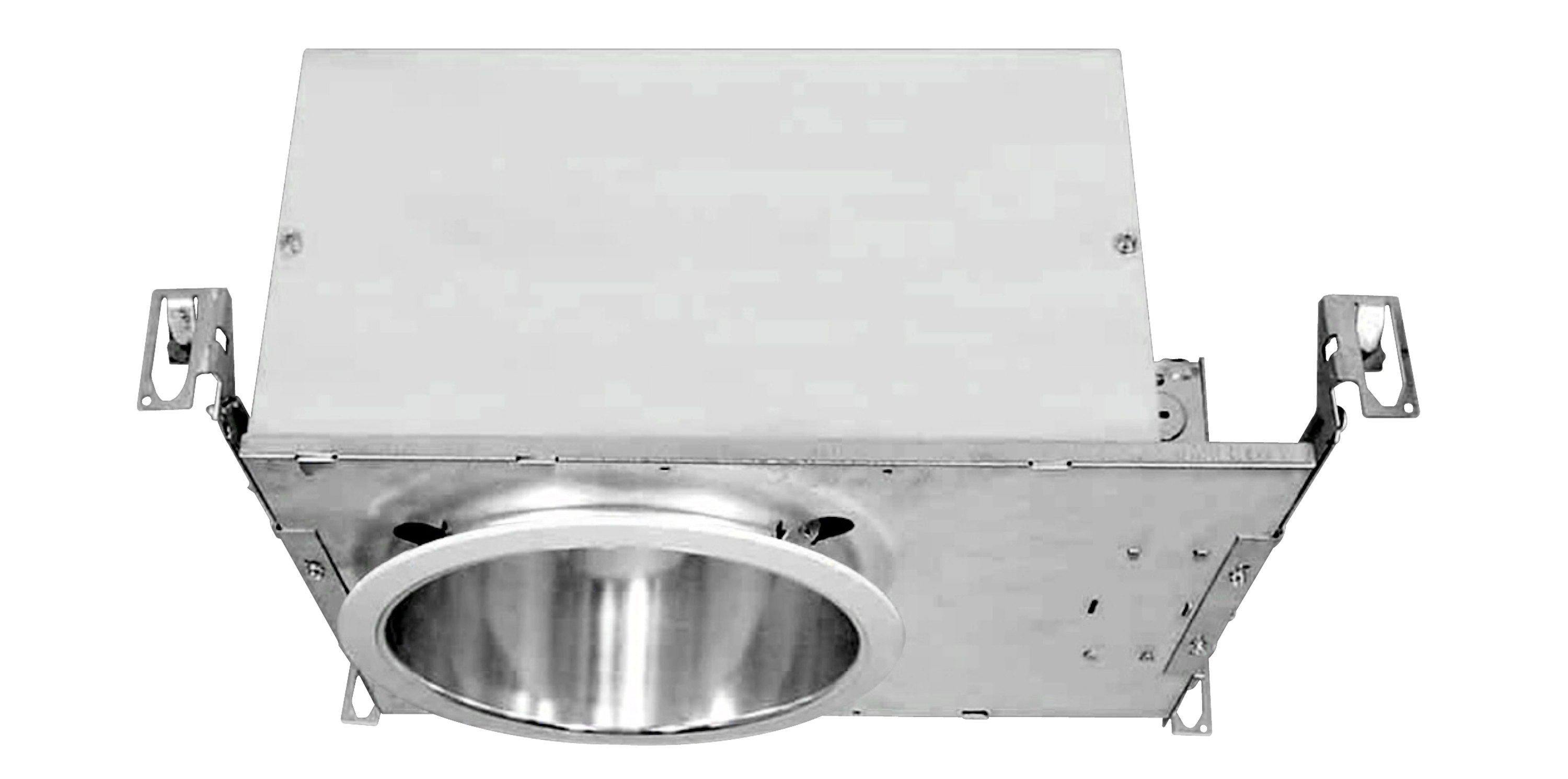

8” IC Compact Fluorescent Housing
8140HIC Series
(Acrobat Reader Required)
Specifications
- Part #:
- 8140HIC2-E2xx (non dimmable)
- 8140HIC-D2xx (dimmable)
- EM option: 8140HIC-EM (emergency)
- Description: 8” IC Compact Fluorescent Housing
- Design Features
- Thermal Protection: Protected against misuse of insulation and improper wiring
- Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
- IC Rating: IC rate for direct contact with non cellulose insulation
- Nails: Pre installed captive nails on bar hangers
- J Box: Listed for feed through wiring (4 in-4 out) and five ½” knockouts & four non metallic cable knockouts w/strain clamps
- Connectors: 3-port quick connectors
- Lamp: Horizontally mounted DTT (Double twin tubes or TT
- Wattage: 2x18W, 2x 26W
- Ballast: HPF (High power factor) electronic for 4-pin type
- Voltage: 120/277V
- Listing
- ETL/UL: cULus for damp location
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
