- Part #: 8196HA

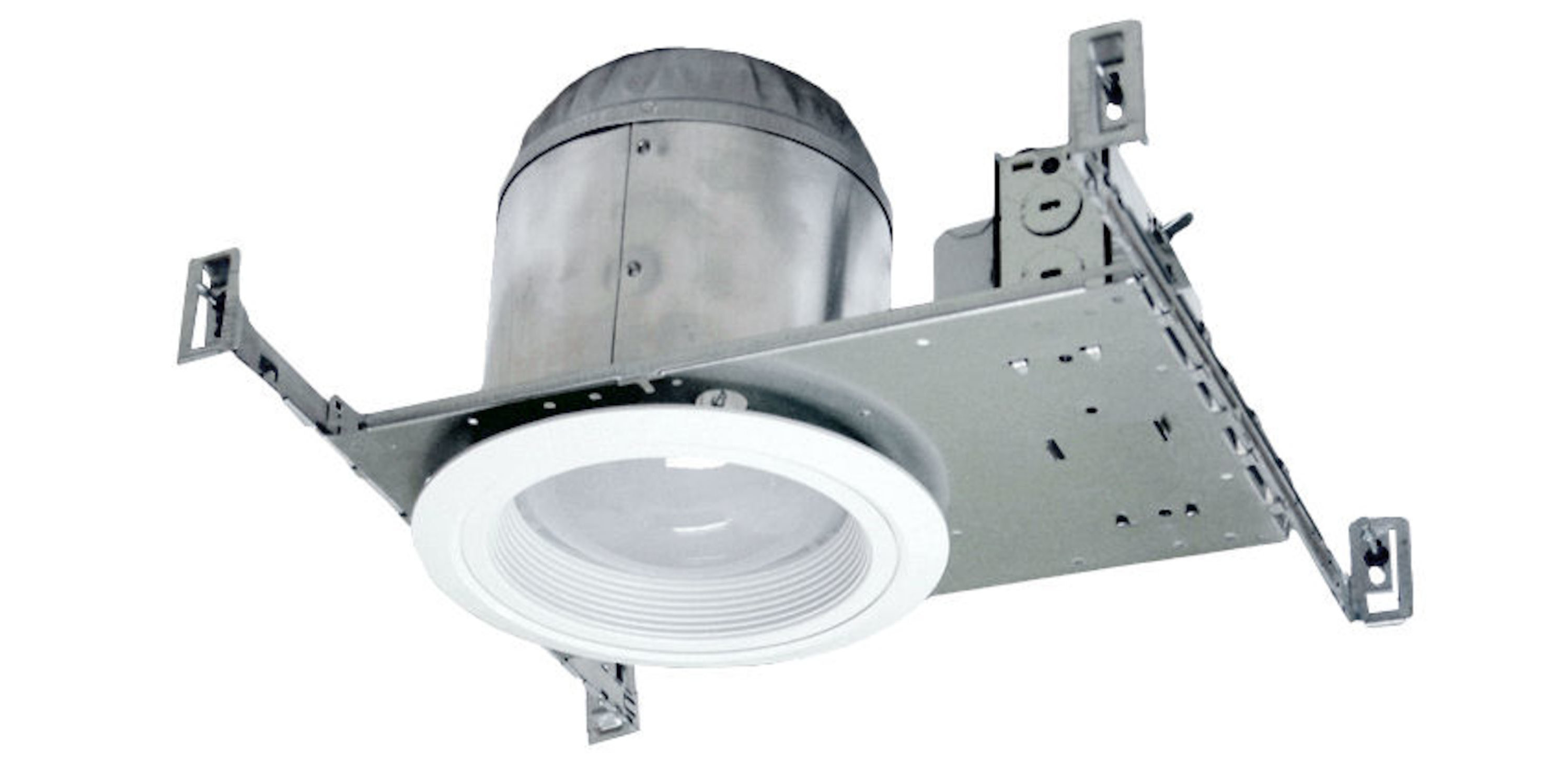

- Description: 6” IC Rated Airtight Fluorescent Housing
- Design Features
- Thermal Protection: Protected against misuse of insulation and improper wiring
- Fit: Adjusts to fit up to 1” ceiling thickness. 7-13/16” height allows use in 2” x 8” joist construction.
- IC Rating: IC rated for direct contact w/ non cellulose type insulation
- J Box: Listed for feed through wiring (4 in-4 out) and seven ½” knockouts & four non metallic cable knockouts w/ strain clamps
- Connectors: 3-port quick connectors
- Ballast: Electronic HPF High Power Factor for 4 pin lamp
- Lamp: Vertically mounted G24/Gx24
- Wattage 1x13W, 1x18W & 26W
- Voltage: 120V
- Bar hangers come preinstalled allowing for position at any point within a 24″ joist span. These can be turned 90 degrees on a plaster frame, and fit T-bar spine without any additional clamps for use in drop ceilings.
- 1 year limited warranty
- ETL/UL: cULus for damp location
- Meets Washington’s State energy code for restricted airflow
