Home > Product > CLOSEOUT – 6” IC Airtight Fluorescent Sloped Ceiling Housing

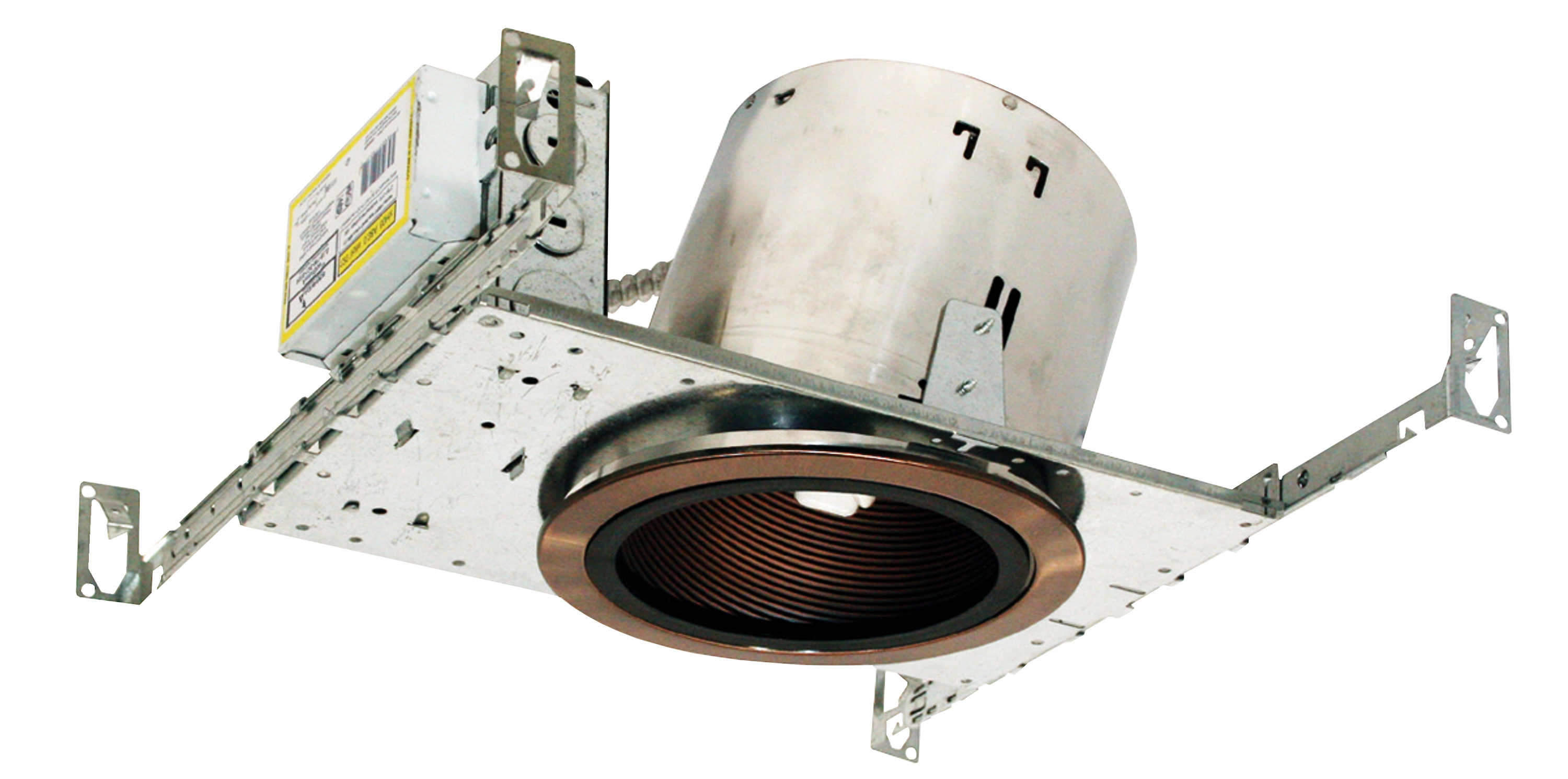

CLOSEOUT – 6” IC Airtight Fluorescent Sloped Ceiling Housing

8197HA Series

Log in or register to see quantities and IES sheets

Download the specification sheet for this product here.
(Acrobat Reader Required)
Specifications
  • Part #:
    • 8197HA-Exx
    • 8197HA-Dxx
  • Description: 6” IC Airtight Fluorescent Sloped Ceiling Housing
  • Design Features
    • Thermal Protection: Protected against misuse of insulation and improper wiring
    • Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
    • Nails: Pre installed captive nails on bar hangers
    • IC Rating: IC rated for direct contact with non cellulose insulation
    • J Box: Listed for feed through wiring (4 in-4 out) and five ½” knockouts & four non metallic cable knockouts w/ strain clamps
    • Connectors: 3-port quick connectors
    • Lamp: 26W
    • Voltage: 120V
  • Warranty: 1 year limited warranty
  • Listing
    • ETL/UL: cULus for damp location
  • Meets Washington’s State energy code for restricted airflow

*Closeout model/finish
Quantities Limited
