Home > Product > 18″ Under cab

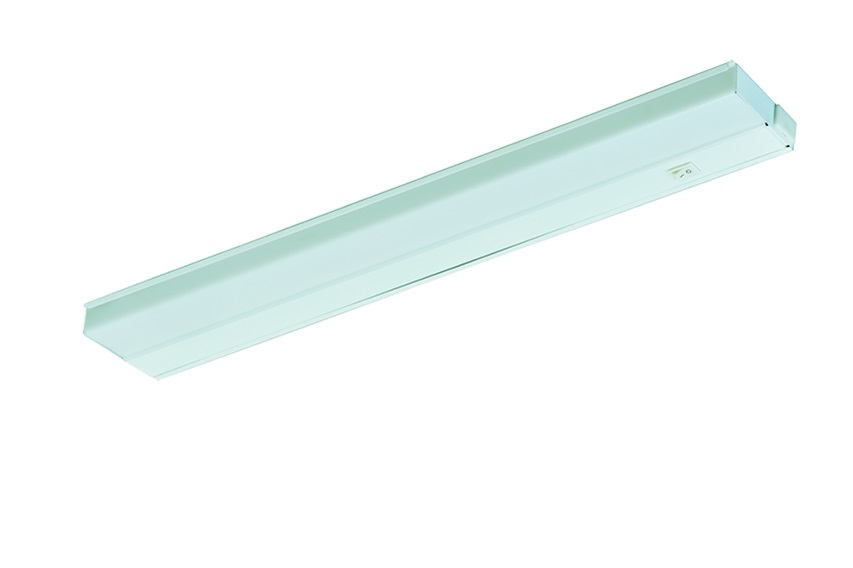

18″ Under cab

8962 Series

Log in or register to see quantities and IES sheets

Download the specification sheet for this product here.
(Acrobat Reader Required)
Specifications
  • Category #: 896 Series
  • 8962 Series
  • Family: RP Lighting LED Under cab
  • Product Category: Under cab
  • Description: 6″, 12″, 18”, 24”, 33”, & 42” LED Under Cab
  • Finish: White & Brushed Aluminum
  • Design Features
    • Dimmable: N/A
    • CRI: 95
    • Color Temperature: 3000K
    • Voltage: 120V-60Hz
    • Lamp: Light Emitting Diode
    • Lamp Life: 50,000 hours
  • Warranty
    • 5 year limited warranty
  • Material
    • Lens: White Ribbed Acrylic
    • Frame: Steel
  • Listing
    • Energy Star: Yes
    • ETL/UL: ETLus
  •  Connectors
    • 896CN: 16″ cable connector & end-to-end connector
  • Glass Replacement ID- 896X-L
    • 8960XX
      • Size: 6″
      • Wattage: 6
      • Lumens: 300
    •  8961XX
      • Size: 12″
      • Wattage: 8
      • Lumens: 500
    • 8962XX
      • Size: 18″
      • Wattage: 10
      • Lumens: 600
    • 8963XX
      • Size: 24″
      • Wattage: 11
      • Lumens: 700
    • 8964XX
      • Size: 33″
      • Wattage: 15
      • Lumens: 1000
    • 8965XX
      • Size: 42″
      • Wattage: 22
      • Lumens: 1400

Log in

Login | Register

Energy Star Description

In an effort to promote energy efficiency, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.   Look for the Energy Star logo for qualified products that will help individuals and business save money through local utility rebate programs.

New Product Description

Under Cabinet Description

RP Lighting and Fans 1” deep, low profile under-cabinet lights are available in multiple lengths and are offered in both T5 fluorescent and LED options.  Both LED and fluorescent fixtures include on\off rocker switch, hard wire connections with numerous knockouts for easy wiring and have a linkable design for multiple units.  The fixtures are constructed with a white acrylic diffuser, high gloss finish and are Energy Star rated.
